Products

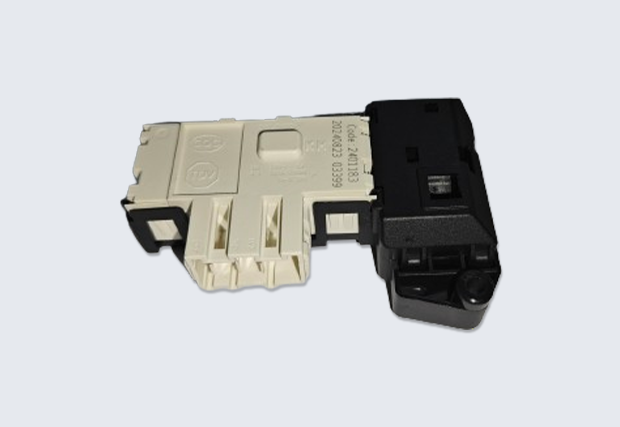

KM-32Door lock switch

PTC door lock: a device that uses PTC electric heating devices to drive the linkage mechanism to open or close the electrical touchpoint and switch the washing machine door on and off within a preset time.

1 General characteristics
PTC door lock: a PTC electric heating device is used to drive the linkage mechanism to open or close the electrical
A device that touchpoints and switches the washing machine door on and off within a preset time.
2 Performance parameters
Rated voltage: 250VAC, 16 (6) A
Rated frequency: 50Hz/60Hz
Temperature class: T85
Touchpoint contact resistance: ≤ 30mΩ
3 Key Control Parameters Process
Locking time (20 ℃ ± 2 ℃): min 0s~ max 8s
Reset time (20 ℃ ± 2 ℃): after 60 seconds of continuous power on, min 25s~ max 100s
Door opening force: 45N ± 8N in unlocked state
